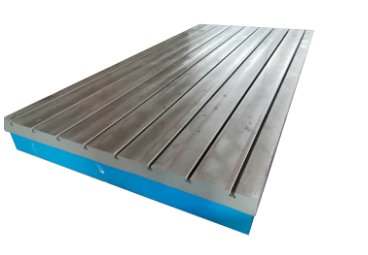

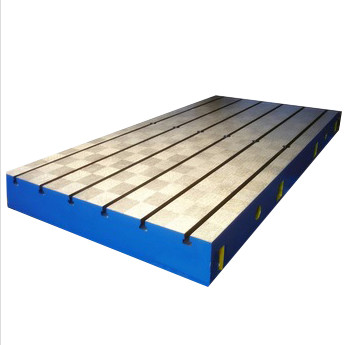

OEM Cast Iron T Slotted Bed Plates Grinding Resistance

Brand Name : OEM

Certification : CO, FORM-E

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T

Supply Ability : 10/monthd

Delivery Time : 20days

Packaging Details : wooden

Material : Grey iron HT250

Name : Cast Iron T Slotted Bed Plates

Type : Hollow type

Flatness : 3 grade

surface finish : hand scrap

Loading weight : as clients request

Warranty : 1 year

Casting Method : Sand Casting

Surface Treatment : Spray-Paint

Coating : Alcohol, Graphite

Contact Now

Cast Iron T Slotted Bed Plates

Specification

item	value
Place of Origin	China
	Hebei
Brand Name	HENGHENG
Model Number	CI
Place of Origin	Hebei, China (Mainland)
Material	HT200-300, QT or steel
Size	200x200mm -- 4000x8000mm
Hardness	HB160-240
Accuracy	0, 1, 2, 3
Machining	CNC machining, precision grinding, hand scraping
Certificate	ISO9001
OEM and ODM	Acceptable
Accessory	stand, pad iron, ground anchor
Packaging	export standard

Usage:

(1) Suitable for various inspections and benchmark planes for accuracy measurement.

(2) Used widely as the measurement benchmark for machine tool inspection and to inspect the

dimension accuracy or running difference with the function of performing precise lineation.

(3) It is an essential measuring tool in machine manufacturing.

Product name	Cast iron platform
Material	HT250-300 QT450-600
Tempering temperature	600-700 degrees
Place of Origin	Hebei,China
Roughness	Ra0.8-3.2
Density	7.3-7.85
Application	Machine made
Accuracy	1.2.3
Aging treatment	Two artificial tempering aging
Work surface treatment:	Grinding process

Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Specification (mm)	Flatness tolerance (um)
	Grade1	Grade2	Grade 3	Finihs plane
400x400	12	24
600x400	14	28
800x500	16	32	80
900x600	16	32	80
1000x750	18	36	90
1000x1000	20	39	96
1500x1000	25	48	120
2000x1000	26	52	129
2000x1500		56	140
2000x2000		60	152	230
2500x1500		68	168	248
3000x1000			174	248
3000x2000			184	275
3000x3000			210	300
4000x1000			210	300
4000x2000			219	310
4000x3000			240	360
5000x2000			255	375
5000x3000			287	420
6000x2000			293	430
6000x3000			308	460
8000x2000			370	520
8000x3000			382	570
